MSMX23B
22.8*17.8mm
120VDC
50±12Hz
≥80dB@10cm
≤40mA
Specification
| Rated Voltage (VAC) | 12 |
| Operating Voltage (VAC) | 10.5~13.5 |
| Current consumption (mA) | ≤80mA |
| Min Sound Output at 10cm (dB) | 75 |
| Coil Resistance (Ω) | 110±10% |
| Tab material | Brass |
| Fundamental Frequency | 50±12Hz |
| Operating Temperature (℃) | -30～+70 |
| Storage Temperature (℃) | -40～+85 |
| Weight (g) | 18 |

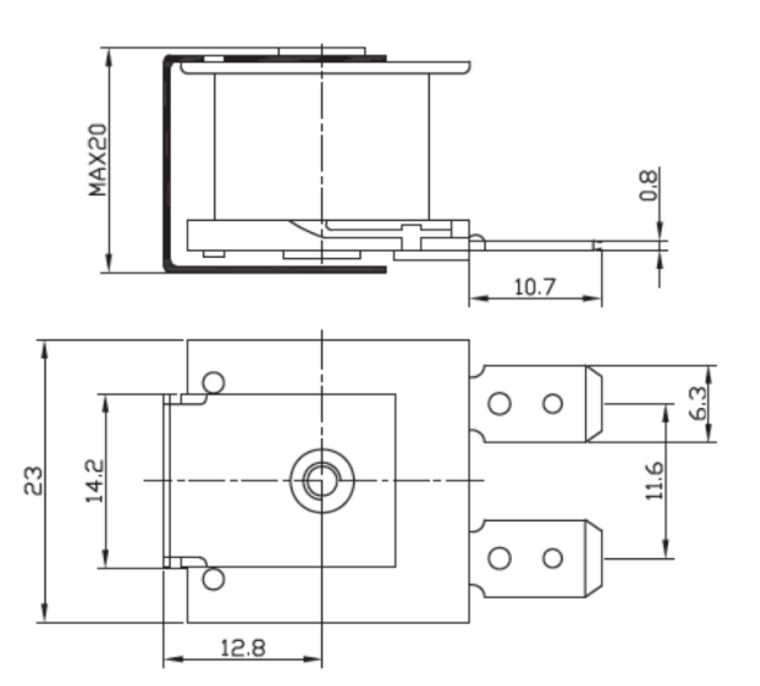

Appearance Drawing
