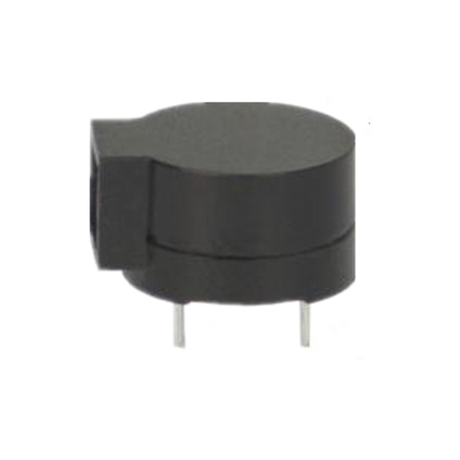

1.5V 70dB 75dB Electronic Magnetic Passive Sound Transducers Buzzer
Specification
| TYPE (UNIT) | MSET12C20P01 | MSET12C20P01 |
| Min. Sound Output at 10cm (dB) | 75 | 70 |
| Rated Voltage (Vp-p) | 1.5 | 1.5 |
| Operating Voltage (Vp-p) | 1~2 | 1~2 |
| Resonant Frequency (Hz) | 2048 | 2048 |
| Max. Current Consumption (mA) | 30 | 15 |
| Coil Resistance (ohms) | 40 | 120 |
| Coil Impedance (ohms) | 40 | 120 |
| Operating Temperature (C) | -20~+60 | -20~+60 |
| Storage Temperature (C) | -30~+70 | -30~+70 |
| Weight (g) | 2 | 2 |
