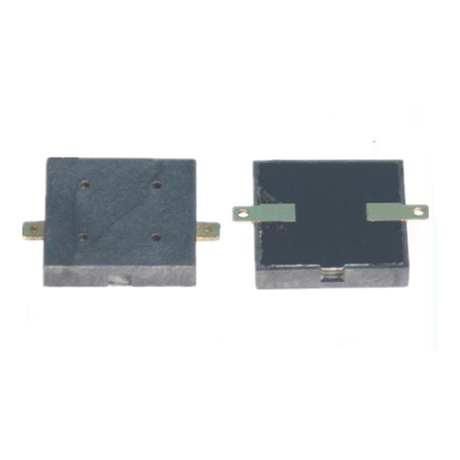

4khz 85dB Small SMD Buzzer
Specification
| Type | Unit | SM13PT03AV5SH |
| Operating Voltage | vp-p | Max 25Vp-p |
| Rated Current(max) | mA | 3mA (Max) |
| Sound output at 10cm | dB | Min 80 dB(Typ.)at 4.1kHz/10cm |
| Rate Frequency | Hz | 4100 |
| Capacitance | pF | 16000±30% |
| Operating temperature | ℃ | -30~+70 |
| Storage Temperature | ℃ | -40~+85 |
| Weight | g | 0.5 |
| Housing material | LCP | |
