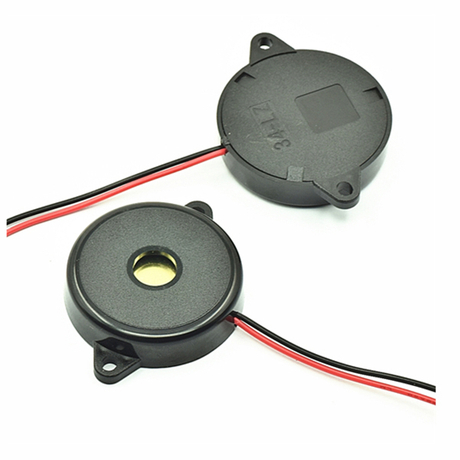

12V 90dB Passive Piezo Buzzer For Home Application
Specification
| TYPE (UNIT) | MSPT35A16W100V12 |
| Min. Sound Output at 10cm (dB) | 90 |
| Rated Voltage (Vp-p) | 12 |
| Operating Voltage (Vp-p) | 3~30 |
| Resonant Frequency (Hz) | 1600+/-500 |
| Max. Current Consumption (mA) | 9 |
| Capacitance at 1,000HZ (pF) | 60000+/-30% |
| Operating Temperature (C) | -30~+80 |
| Storage Temperature (C) | -30~+80 |
| Housing Material | PPO |
| Weight (g) | 5 |
