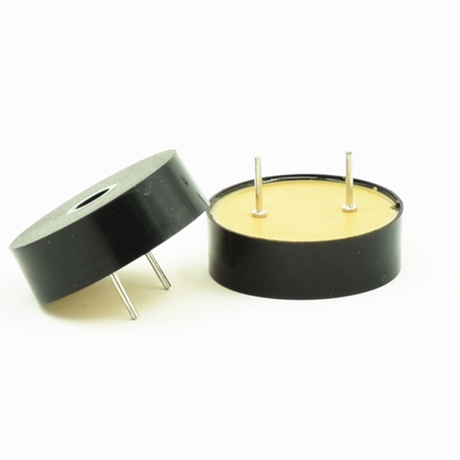

5V 80dB 4000Hz Passive Piezo Sounder Buzzer
Specification
| Type | Unit | MSPT30D45P20V10 |
| Operating Voltage | v | 1.0~24.0 |
| Rated Current(max) | mA | 11mA (Max) |
| Sound output at 10cm | dB | Min 85dB(Typ.)at 10cm,2 khz |
| Rate Frequency | Hz | 2500±500 |
| Capacitance | pF | 45000±30% |
| Operating temperature | ℃ | -20~+70 |
| Storage Temperature | ℃ | -30~+80 |
| Weight | g | 1.0 |
| Housing material | PPO |
|
| Packing Condition | 2000pcs/box | |
