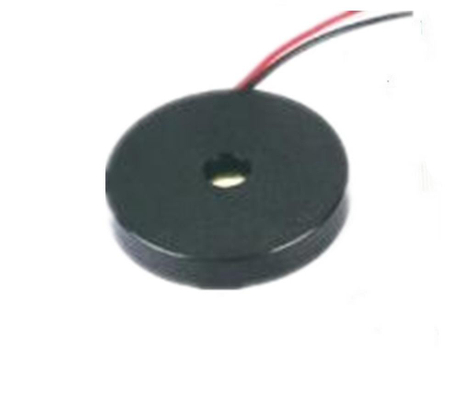

30mm 110db Mini Low Current Passive Piezo Buzzer
Specification
NO. | Item | Unit | Specifications |
1-1 | Rated Voltage（Square Wave） | Vp-p | 12 |
1-2 | Operating Voltage | Vp-p | 1-40 |
1-3 | ＊Min Sound Output at 3.25kHz/10cm | dB | 110(typ.115) |
1-4 | ＊Resonant Frequency | Hz | 3250 |
1-5 | Operating Temperature | ℃ | -30~+70 |
1-6 | Storage Temperature | ℃ | -40~+85 |
1-7 | Weight | g | 5.0 |
1-8 | Housing Material | Black ABS777D | |
1-9 | Lead Wire | UL1007 AWG28(Red & Black) | |
1-10 | Tone Nature | Single | |
