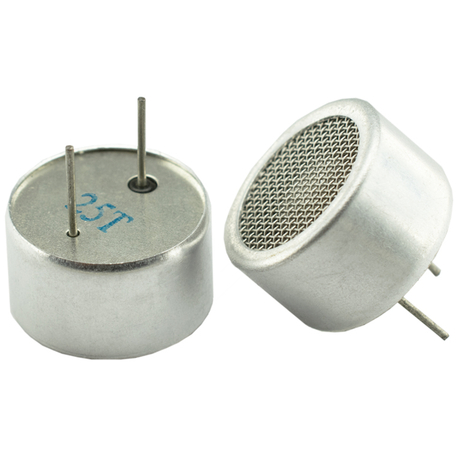

25khz 24mm Transmitter Ultrasonic Sensor with Pins for Jammer
Specification
| Using method | Transmitter/ Receiver |
| Maximum input voltage | 80Vp-p |
| Center frequency | 25.0±1.0KHz |
| SPL | 112dB min. |
| Typical sensing range | 0.2~15m |
| Directivity deg | 60°±15° (-6dB) |
| Capacitance | 2400±20%pF |
| Resolution | 10mm |
| Housing material | Aluminum |
| Driving Voltage | ≤150Vrms |
| Operating Temperature | -20～+70℃ |
| Storage Temperature | -40～+85℃ |
