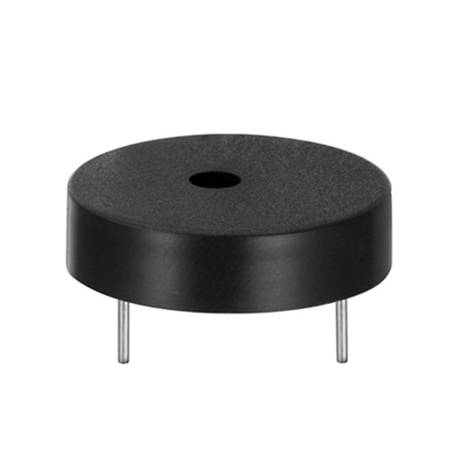

9V 85dB 4000Hz Electric Piezo Transducer Buzzer
Specification
| Model No | MSPT22A40P09 |
| Rated Voltage(square wave) | 9V |
| Operating Voltage | 1~30V |
| Rated Current(max) | 2mA |
| Min Sound Output at 3.4kHz/10cm | 85dB |
| Rated Frequency | 4000+/-500Hz |
| Capacitance at 120Hz | 14000+/-30% |
| Operating Temperature | -20~+60℃ |
| Storage Temperature | -30~+70℃ |
| Weight | 2.1g |
