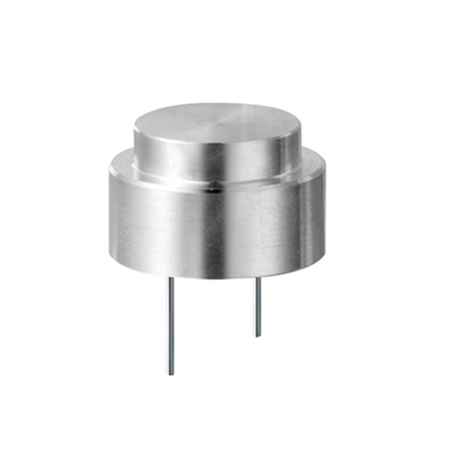

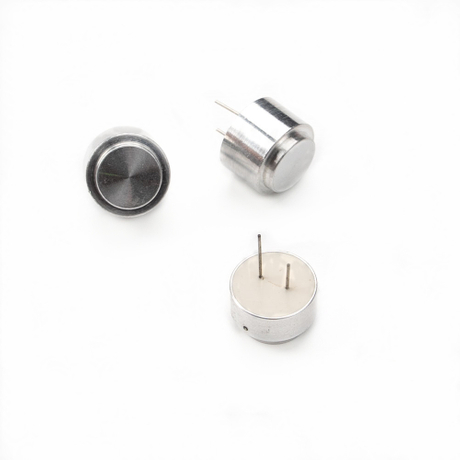

Detect Ultrasonic Sensor Transmitter And Receiver for Intelligent Products
Specification
Item |
Value |
Using method |
Transmitter and Receiver |
Center frequency |
40±1.5KHz(PV80A) |
Transmitting Sound Pressure Level |
≥96dB |
Capacitance |
2000±20%pF(at 1.0KHz) |
Directivity |
80±15°(-6dB) |
Max.Input Voltage |
150Vp-p(40KHz) |
Detectable range |
30cm~650cm |
Ring time |
≤2.0ms（elmos52409） |
Echo |
≥ 140(test plate φ 75 × 1000mm PVC pipe, distance 1m) |
Impedance |
≤3000Ω |
Mean time between failures |
5000h |
Terminal |
PIN |
Housing material |
Aluminum |
Protection Class |
IP68 |
Operating Temperature |
-40~+80℃ |
Storage Temperature |
-40~+85℃ |
