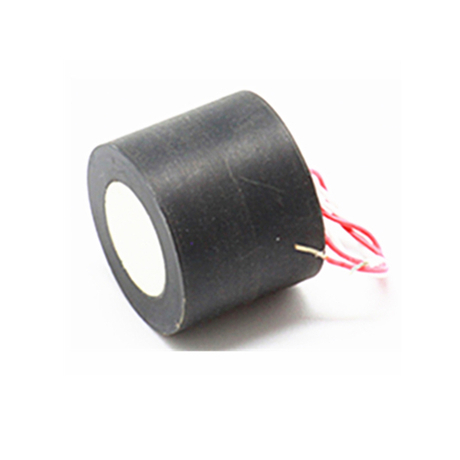

High Frequency 165kHz Ultrasonic Sensor Water Level
Specification
| Center frequency | 165±5KHz |
| Bandwidth | 6.0KHz |
| Echo Sensitivity | -68dB min |
| Min. Parallel Resistance | 280Ω±30％ |
| Capacitance | 850±20％ pF |
| Input Voltage | ≤300Vpp |
| Directivity | 14°±2°(-6dB) |
| Typical Sensing Range | 0.1~2.5m |
| Material | Plastic |
| Operating Temperature | -20℃~+80℃ |
| Storage Temperature | -35℃~+85℃ |
