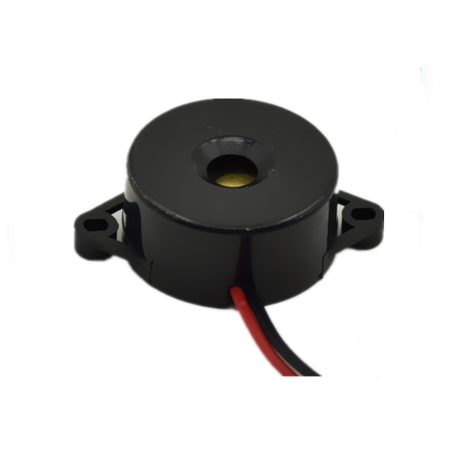

90dB 22mm piezo electric buzzer with two wires
Specification
| Model No | MSPS22A37W150V5 |
| Rated Voltage(square wave) | 5V |
| Operating Voltage | Max 20Vp-p |
| Rated Current(max) | 10mA （Max） |
| Min Sound Output at 3.4kHz/10cm | Min 90dB（Typ.）at 5Vp-p,3.7khz |
| Operating Temperature | -20~+60℃ |
| Storage Temperature | -30~+70℃ |
| Weight | 0.5g |
