What is Active Piezo Buzzer?

Views:57     Author:kim     Publish Time: 2019-07-15      Origin:Site

The active piezo buzzer is an integrated electronic sounder that is powered by DC voltage and is widely used in electronic products such as computers, printers, copiers, alarms, electronic toys, automotive electronics, telephones, timers, etc. Sounding device. The buzzer is mainly divided into two types: piezo buzzer and magnetic buzzer.The piezoelectric buzzer is mainly composed of a multivibrator, a piezoelectric buzzer, an impedance matching device, a resonance box, an outer casing and the like. Some piezoelectric buzzer housings are also equipped with light-emitting diodes.

1.Active Piezo Buzzer SPECIFICATION

Sound pressure Level90dB Min/10cm
Rated Voltage VDC12V
Resonant Frequency3.5±0.5kHz
Current at rated Voltage15.0mA Max.
Operating Voltage3-20 Vdc
Operation Temperature-20°C - +70°C
Storage Temperature-30°C - +80°C
Tone NatureSingle
Weight4
House materialMPPO

VALUE APPLYING RATED VOLTAGE (3200Hz 1/2 DUTY SQUARE WAVE)

VALUE APPLYING (3200Hz SINE WAVE MEASURING CURRENT 60μA)


2.Active Piezo Buzzer APPEARANCE DRAWING




(UNIT:MM) Tolerance: ±0.2mm


3.TESTING  METHOD

Standard Measurement conditions

Temperature:25±2℃Humidity:45-65%

Acoustic Characteristics:

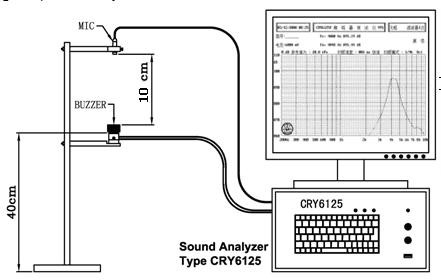

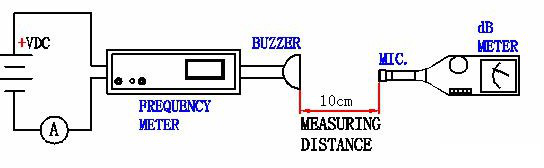

The oscillation frequency, current consumption and sound pressure are measured by the measuring instruments shown below

In the measuring test, buzzer is placed as follows:


4.FREQUENCY CURVE


5.RELIABILITY TEST

NO.ITEMTEST CONDITION AND REQUIREMENT
1High Temperature Test (Storage)After being placed in a chamber with 70 2ºC for 96 hours and then being placed in normal condition for 2 hours. Allowable variation of SPL after test: +/-10dB.
2Low Temperature Test (Storage)After being Placed in a  chamber  with -30 2ºC for 96 hours and then being placed in normal condition for 2 hours. Allowable variation of SPL after test: +/-10dB.
3Humidity TestAfter being Placed in a chamber with 90-95% R.H. at 40 2ºC for 96 hours and then being placed in normal condition for 2 hours. Allowable variation of SPL after test: +/-10dB.

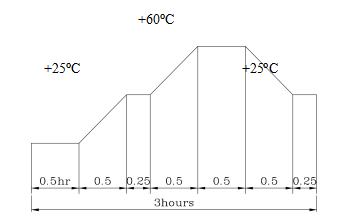

4Temperature Cycle Test
5Drop TestDrop on a hard wood board of 4cm thick, any directions ,3 times, at the height of 75cm . Allowable variation of SPL after test: +/-10dB.
6Vibration TestAfter being applied vibration of amplitude of 1.5mm with 10 to 55 Hz band of vibration frequency to each of 3 perpendicular directions for 2 hours . Allowable variation of SPL after test: +/-10dB.
7Solderability TestLead terminals are immersed in rosin for 5 seconds and then immersed in solder bath of +300  5ºC for 3  1 seconds .90% min. lead terminals shall be wet with solder (Except the edge of terminals).
8Terminal Strength Pulling TestThe force of 9.8N(1.0kg) is applied to each terminal in axial direction for  10 seconds. No visible damage and cutting off.

TEST CONDITION.

TEST CONDITION.

Standard Test Condition:a) Temperature : +5 ~ +35℃b) Humidity : 45-85%c) Pressure : 860-1060mbar

Judgment Test Condition:a) Temperature : +25 ± 2℃b) Humidity : 60-70%c) Pressure : 860-1060mbar


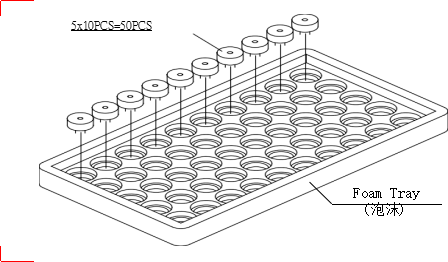

6.PACKING STANDARD
