MA161H103
Min 110dB
2.8 KHz
Specification
Item | Value |
| Resonant Frequency | 2.8KHz |
Operating Volt. | 1-28Vp-p |
Rated Volt. | 12Vp-p |
Capacitance at 1000Hz | 65000±30%pF |
Min. Sound Output | 100dB/1m |
Operating Temperature | -20~+65℃ |
Storage Temperature | -25~+70℃ |
Housing material | PP(Black) |

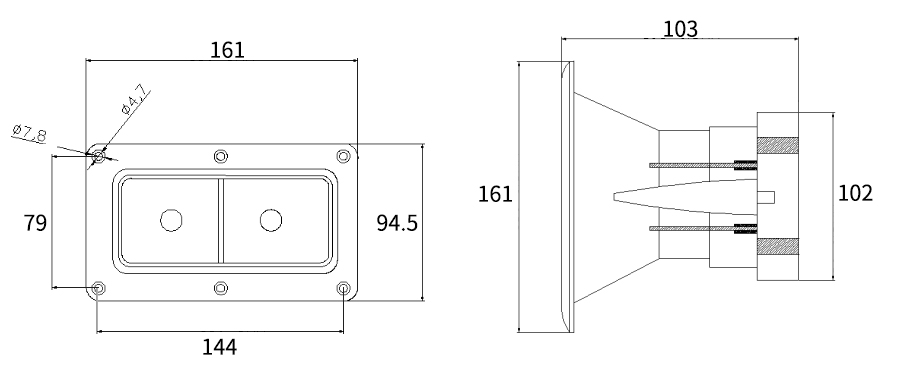

Appearance Drawing
