42MM Siren Sound Piezo Buzzer

  • MSPS42BW150V12ST
  • 41.7 * 18.0mm
  • 12VDC
  • 3500±500Hz
  • ≥90dB@10cm
  • ≤25mA
  • 5~18VDC
  • MSPS42BW150V12ST.pdf

Specification

TYPE (UNIT)

MSPS42BW150V12ST

Min. Sound Output at 10cm (dB)90dB
Rated Voltage VDC12
Operating Voltage VDC5~18
Max. Current Consumption (mA), at 12VDC25
Tone NatureSiren
Operating Temperature (C)-20~+60
Storage Temperature (C)-30~+70
Weight (g)15

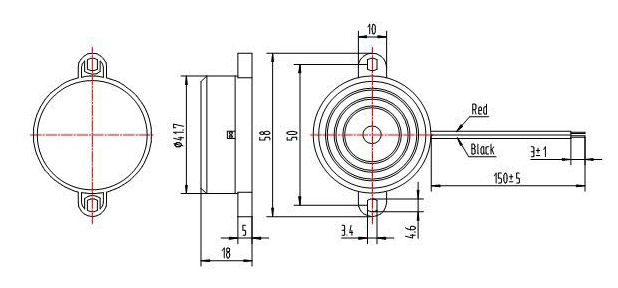

Appearance Drawing
