40khz Enclosed Ultrasonic Sensor for Reversing Radar

  • MSW-A1640H12TR
  • 16 * 12MM
  • Enclosed
  • X:80°±15° Y:80° ±15°
  • 40±1.0KHz
  • ≥150Mv
  • Dual use

Specification

Center frequency(KHz)40±1.0
Echo Sensitivity (MV)≥150Mv
Decay(Ms)≤1.2
Directivity (X)80±15°
Directivity (Y)80±15°
Max input voltage(Vp-P)150(Operating Frequency 40KHz,Pulse Width0.5mS,Pulse Interval 20mS)
Using methodTransmitter/Receiver
Capacitance(pF)1800±15%(At 25℃,1 Khz)
Mean Time To Failure(h)50000
Operating Temperature(℃)-40~+85
Storage Temperature(℃)-40~+85

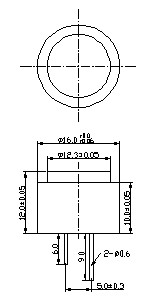

Appearance Drawing
