40khz Distance Measuring Waterproof Ultrasonic Sensor
40khz Distance Measuring Waterproof Ultrasonic Sensor
Share to:

40khz Distance Measuring Waterproof Ultrasonic Sensor

  • MSW-A1840H12TR
  • 18 * 12MM
  • Enclosed
  • 60°±15° (-6dB)
  • 40±0.5KHz
  • ≥-75dB
  • Dual use
Inquire Add to Basket

Specification

Center frequency40±0.5KHz
Transmitting Sound pressure level≥100dB
Receiving Sensitivity≥-75dB
Capacitance2200±20%pF
Directivity deg(-6dB)47°
Operating Temperature-40～+80℃
Housing MaterialAluminum

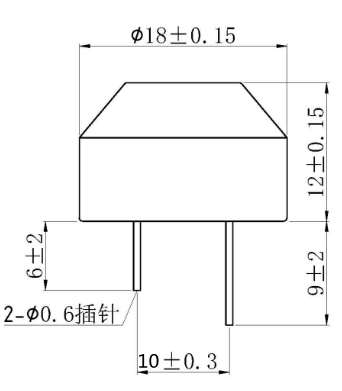

Appearance Drawing

Encolsed Type
