90dB 22mm piezo electric buzzer with two wires

  • MSPS22A37W150V5
  • 22.0 * 10.7mm
  • 5VDC
  • 4000±500Hz
  • ≥90dB@10cm
  • ≤10mA
  • ≤20VDC
  • MSPS22A37W150V5.pdf

Specification

Model No

MSPS22A37W150V5

Rated Voltage(square wave) 5V
Operating Voltage

Max 20Vp-p

Rated Current(max)

10mA (Max)

Min Sound Output at 3.4kHz/10cm

Min 90dB(Typ.)at 5Vp-p,3.7khz

Operating Temperature-20~+60℃
Storage Temperature-30~+70℃
Weight0.5g

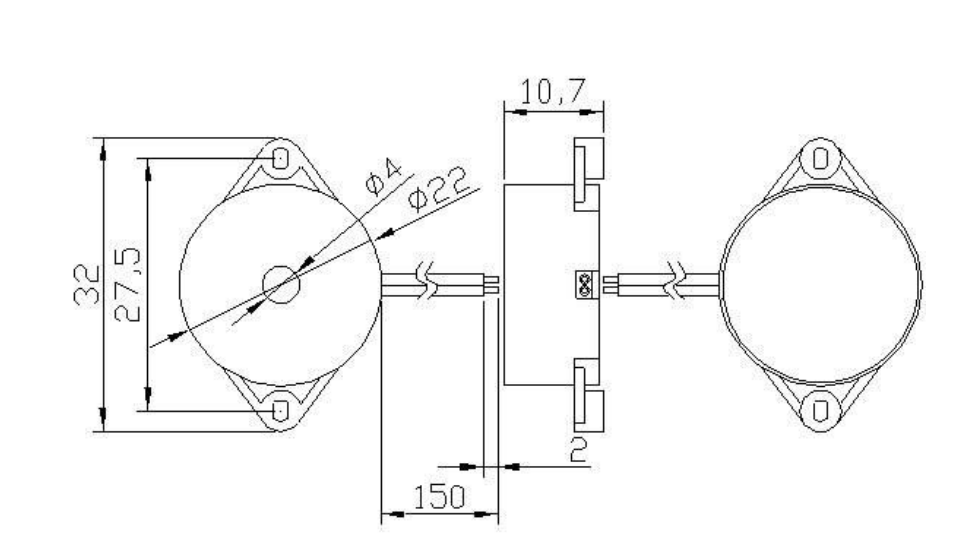

Appearance drawing

7
