Home / Piezo Buzzer / Active Type / 21-29mm / 90dB 12V 3.5kHz Electronic Active Piezo Buzzer
Share to:

90dB 12V 3.5kHz Electronic Active Piezo Buzzer

  • MSPS23A
  • 23 * 10mm
  • 12VDC
  • 3500±500Hz
  • ≥90dB@10cm
  • ≤15mA
  • 3~20VDC
  • MSPS23A.pdf

Specification

TYPEMSPS23A35P12
Sound pressure Level90dB Min/10cm
Rated Voltage VDC12V
Resonant Frequency3.5±0.5kHz
Current at rated Voltage15.0mA Max.
¨Operating Voltage    3-20 Vdc
Operation Temperature-20°C - +70°C
Storage Temperature-30°C - +80°C
Tone NatureSingle
Weight4
House materialMPPO

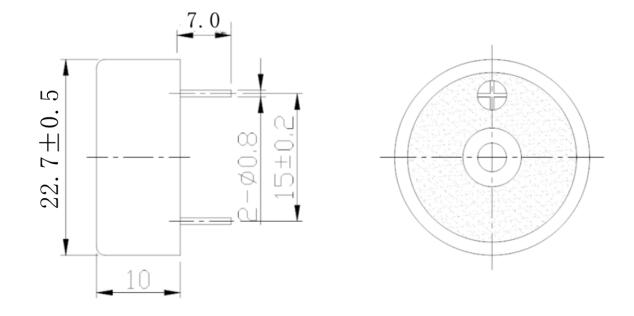

Appearance Drawing
