Car Parking Sensor for General Cars

  • MS-T/R16401L
  • 40KHz±1.5KHz
  • ≥95dB (30cm/10Vrms Sine Wave)
  • ≥-82dB/v/μ bar(0dB=V/Pa)

Specification

Center frequency(KHz)40KHz±1.5KHz
Transmitting  Sound  Pressurs  Level(dB)≥95dB (30cm/10Vrms  Sine  Wave)
Receive  Sensitive(dB)≥-82dB/v/μ bar(0dB=V/Pa)
-6 dB  Directivity(deg)85±10°
Ringing(ms)≤1.2
FunctionTransmitter/Receive
Capacitance(pF)2000±20% at  1.0KHz
Allowable  Input  Voltage(Vp-p)150(40KHz)
Operating  Temperature(℃)-40~+80℃
Storage  Temperature(℃)-40~+85℃
Metals  of  casePlastics
TerminalConnector
Weight(g)49.0±5.0

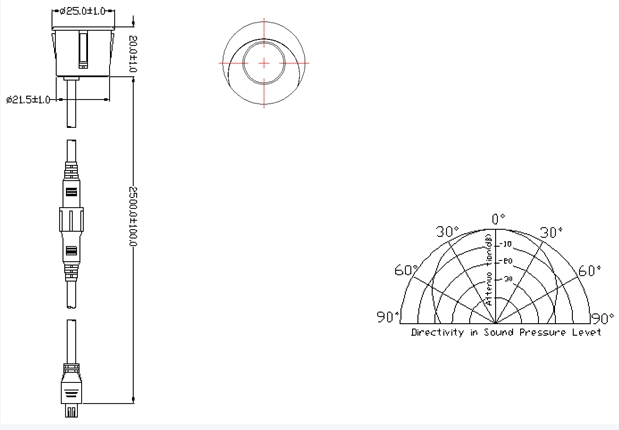

Appearance Drawing
