1.5V 5V 12V 85dB Split Magnetic Buzzer

  • MSET12A
  • 11.8 * 9mm
  • 5Vp-p
  • 2000±500Hz
  • ≥85dB@10cm
  • ≤50mA
  • 3~7Vp-p

Specification


TYPE (UNIT)MSET12A24P05
Min. Sound Output at 10cm (dB)85
Rated Voltage (Vp-p)5
Operating Voltage (Vp-p)3~7
Resonant Frequency (Hz)2000
Max. Current Consumption (mA)50
Coil Resistance (ohms)42±3
Operating Temperature (C)-20~+75
Storage Temperature (C)-30~+85
Weight (g)2

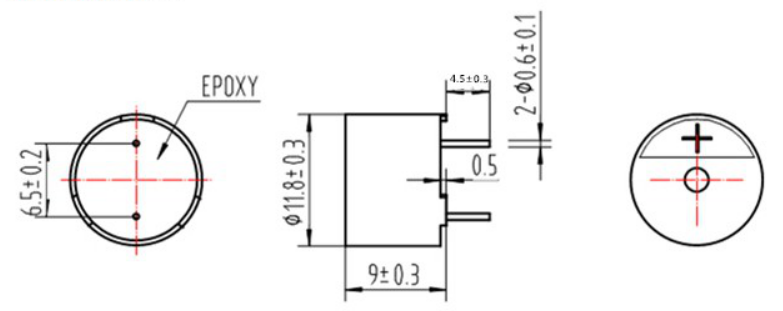

Appearance Drawing

ET12A
