12V 24V 105db Piezo Fire Strobe Siren with Wire
Model:
ASP54A
Dimension:
54mm
Voltage:
DC 12V/24V
Sound:
1 OR 6 TONE
SPL(1Meter):
105±3dB
Rated Power:
10W
Resonant Frequency:
2.6kHz
Current:
150~180mA
Inquire
Add to Basket
Specification
Appearance Drawing
Specification
VOLTAGE
6~12V
CURRENT
150~180mA
SOUND
1 TONE
dB/M
105
MATERIAL
ABS
COLOR
BLACK / WHITE/RED
PACKING
200PCS/0.04CBM

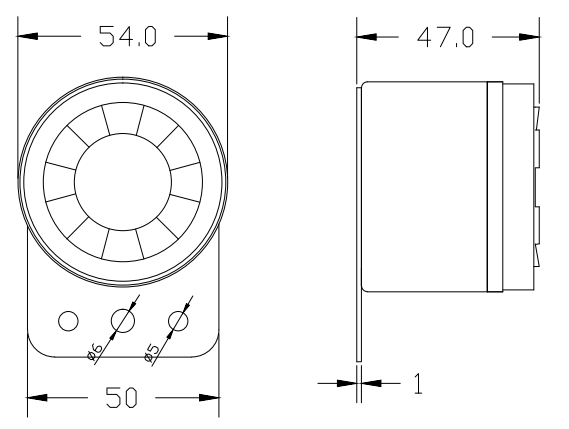

Appearance Drawing
Piezo Siren
