40khz Open Ultrasonic Sensors Transmitter And Receiver

  • MSO-A1240H09TR
  • 12 * 9mm
  • Open Type
  • 70°
  • 40±1.0KHz
  • Min.115 (30cm/10Vrms Sine Wave) 0dB=0.0002u bar
  • Min. –75±3Db/V/μ bar(at 40Khz 0Db=1v/u bar)
  • Transmitter

Specification

Item

Unit

Specification

Function


Transmitter

Construction


Open structure

Center Frequency

KHz

40±1.0

Sound Pressure Level

dB

115dB

Receive Sensitive

dB

-------

Directivity

°

70

Driving Voltage

Vrms

30

Capacitance

PF

2000±25%

Operating Tem.Range

-20+70℃

Storage Temerature

-40+85

Housing Material


Aluminum

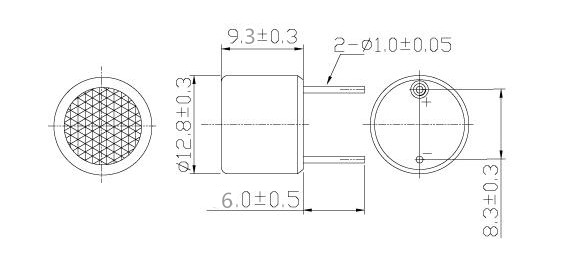

Appearance Drawing
