20khz 24mm Jammers Ultrasonic Sensor

  • MSO-A2420H14T
  • 24*14mm
  • Open Type
  • 80°±15° (-6dB)
  • 20±1.0KHz
  • ≥110dB
  • Transmitter
Inquire Add to Basket

Specification

ItemTransmitter
Center frequency20KHz
SPL≥110dB
Directivity80°±15°
Capacitance2200±30%pF
Housing materialAluminum
Driving Voltage≤150Vrms
Operating Temperature-20～+70℃
Storage Temperature-35～+85℃

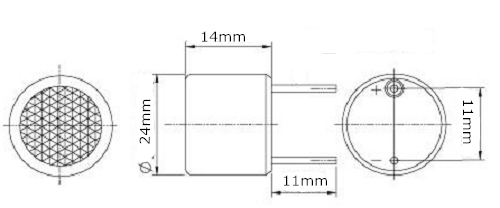

Appearance Drawing

Open Type
