9V 12V 85dB 4000Hz Passive Piezo External Buzzer With Pin
Model:
MSPT17G
Dimension:
17.0 * 7.0mm
Rated Voltage:
9Vp-p
Frequency:
4000±500HZ
SPL:
≥85dB@10cm
Current:
≤3mA
Operating Voltage:
1~30Vp-p
Availability:
Inquire
Add to Basket
Specification
Appearance Drawing
Specification
Type
MSPT17G
Voltage (Vp-p)
9V
Rated Current(max)
3.0mA
Min Sound Output at rated voltage /10cm
85dB
Rated Frequency
4000+/-500Hz
Operating Temperature
-20~+70
Storage Temperature
-30~+80
Weight
1g

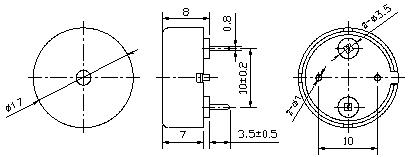

Appearance Drawing
