12V 85dB Piezo Electronic Sound Buzzer

  • MSPS14A40P7.6V12
  • 13.8 * 7.5mm
  • 12VDC
  • 4000±500Hz
  • ≥85dB@10cm
  • ≤7mA
  • Max 25VDC
  • MSPS14A40P7.6V12.pdf

Specification

Model No

MSPS14A40P7.6V12

Rated Voltage12VDC
Operating VoltageMax 25VDC
Rated Current7mA
Min.Sound Pressure Level85dB at 1kHz/10cm
Rated Frequency4±0.5KHz
Operating Temperature-20~+60℃
Storage Temperature       -30~+70℃
ToneSingle
Weight0.5g

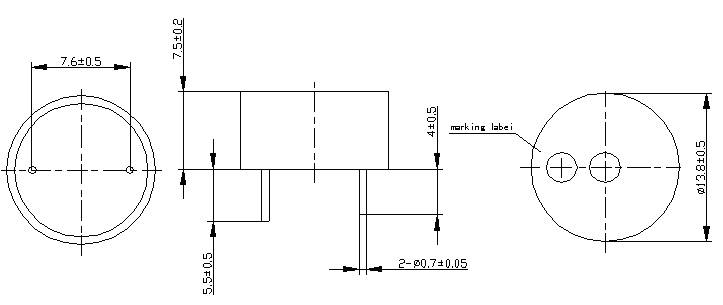

Appearance drawing

8
