16mm Underwater Ultrasonic Transducer 40khz Generator

  • MSO-P1640H12R
  • 16*12mm
  • Open Type
  • 80°±15° (-6dB)
  • 39±1.0KHz
  • ≥-68dBV/μMbar
  • Receiver
  • MSO-P1640H12R.pdf

Specification

Item
ReceiverNote
Center frequency39.0±1.0KHz
SPL
-------0dB=0.0002μbar
Sensitivity-------≥-68dB0dB=1volt/μbar
Directivity80°±15°-6dB typical
Capacitance2400±20%pF
Housing materialBlack Plastic
Measure distance0.2~18m

Allowable input voltage

150Vp-p(39KHz)


Operating Temperature-20~+70℃
Weight 2.0g

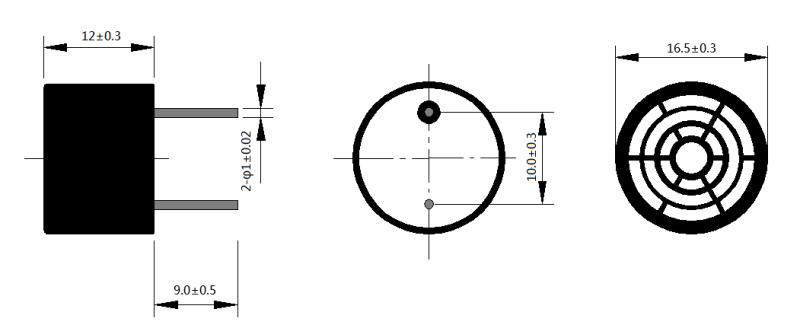

Appearance Drawing
