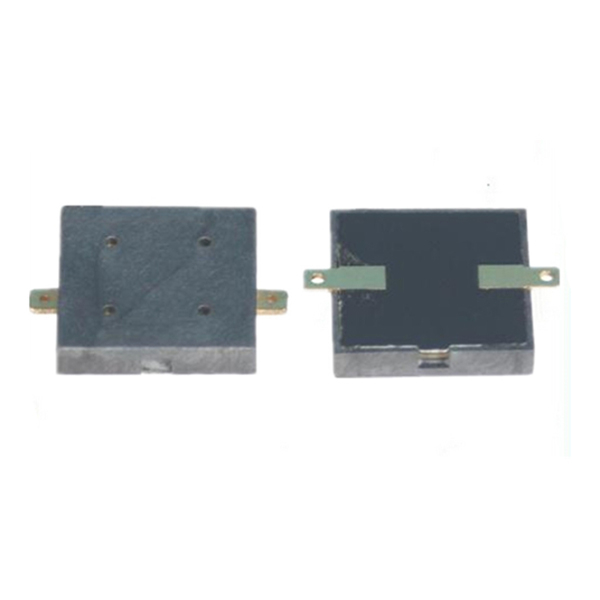

4khz 85dB Small SMD Buzzer
4khz 85dB Small SMD Buzzer
Share to:

4khz 85dB Small SMD Buzzer

  • SM13PT02A
  • 13.0 *13.0 * 2.5mm
  • 5Vp-p
  • 4000±500Hz
  • ≥85dB@10cm
  • ≤3mA
  • 1~25Vp-p
Inquire Add to Basket

Specification

TypeUnitSM13PT02A
Operating Voltagevp-pMax 25Vp-p
Rated Current(max) mA3mA (Max)
Sound output at 10cmdBMin 85dB(Typ.)at 5Vp-p,4 khz
Rate Frequency Hz4000
Capacitance pF15000±30%
Operating temperature℃-20~+60
Storage Temperature ℃-30~+70
Weight g0.5
Housing material LCP
Packing Condition 500PCS/REEL,  5000PCS/BOX


Appearance Drawing

SMD Buzzer
