6v 12v 90db Loud SMD Piezo Buzzer

  • SM17PS08AV12TS
  • 17.0 * 17.0*8.2mm
  • 12VDC
  • 4000±500Hz
  • ≥ 83dB@10cm
  • ≤8mA
  • 3~20VDC
  • SM17PS08AV12TS.pdf
Availability:

Specification

TypeUnit
SM17PS08AV12TS
Operating VoltageVDC
3 ~20
Rated Current(max)mAMAX. 8
Sound output at 10cmdBMIN. 83 at 10cm at Rated Voltage
Rate FrequencyHz
4.0±0.5
Tone Nature

Single
Operating temperature
-30~ +70
Storage Temperature
-40 ~ +80
Weightg
3
Housing materialPPS

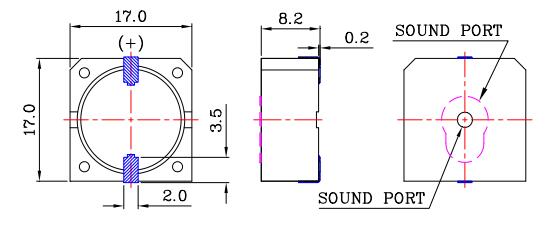

Appearance Drawing

QQ截图20211025140337
