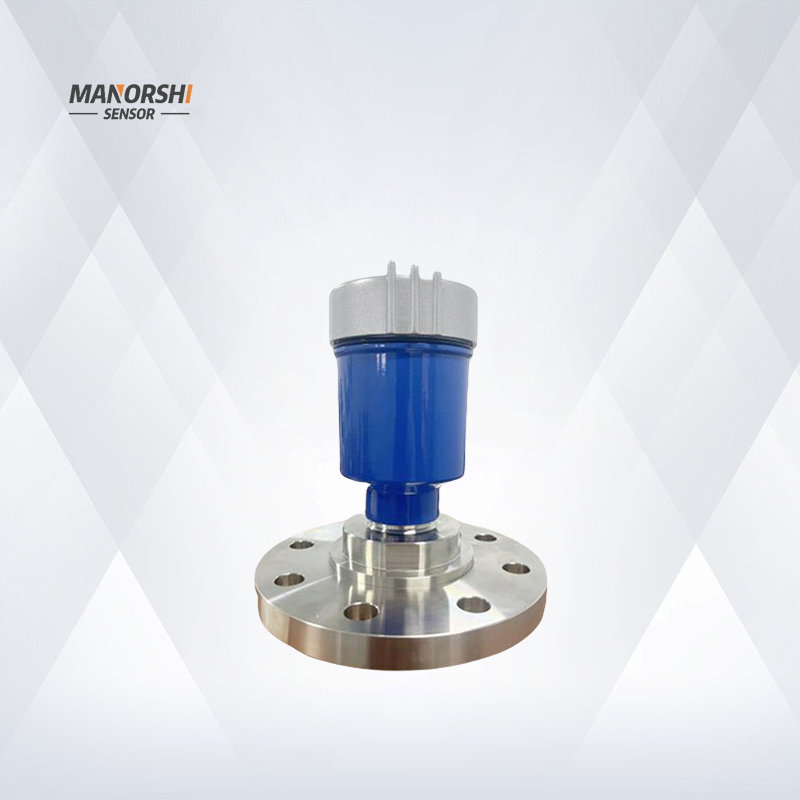

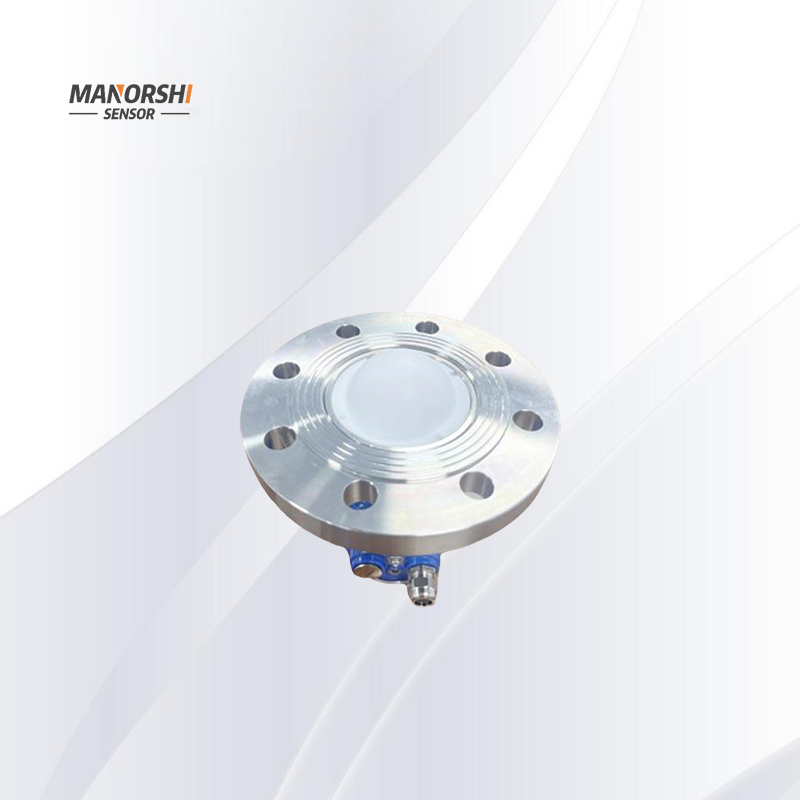

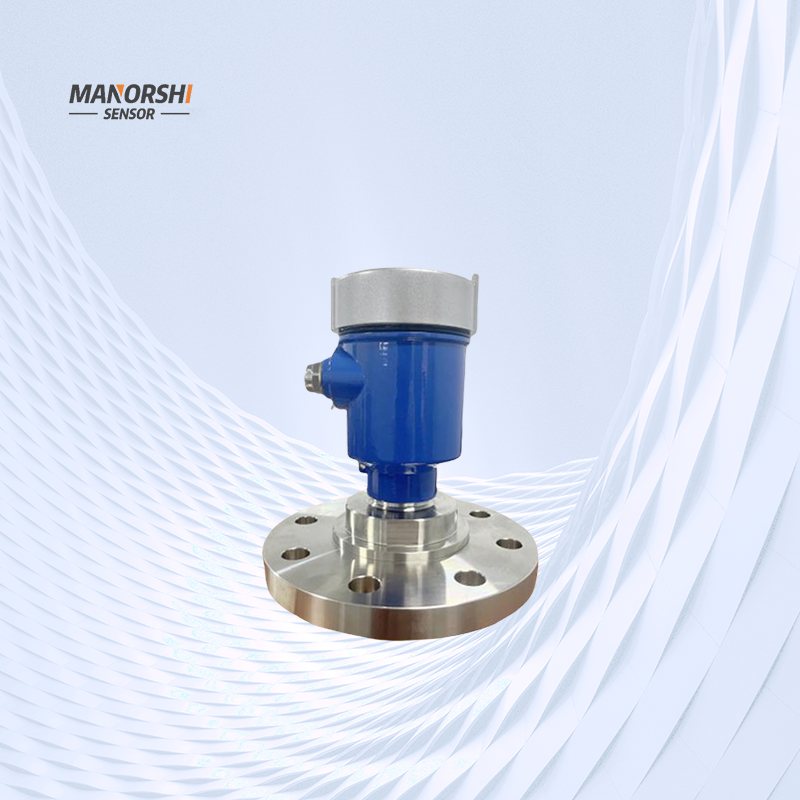

MNSLL-H105 Cement Silo Radar Level Sensor
The MANORSHI MNSLL-H105 is a radar level sensor designed for cement silo level measurement, solid material height monitoring and liquid level measurement.
Using radar wave level measurement technology, the sensor provides non-contact measurement over a range of 0.05 to 120 meters with a specified accuracy of 2 mm.
The MNSLL-H105 provides a standard 4-20mA analog output and operates from a 12–24VDC power supply, allowing integration with compatible industrial monitoring and control systems.
Key Features
Non-contact radar wave level measurement
Suitable for cement silo and solid material level monitoring
Long measuring range for different storage applications
High measurement accuracy
Standard 4-20mA industrial output
Technical Specifications
Parameter | Specification |
Product Model | MNSLL-H105 |
Brand | MANORSHI |
Product Type | Radar Level Sensor |
Measurement Principle | Radar Wave Level Measurement |
Measuring Range | 0.05–120 m |
Accuracy | 2 mm |
Output Signal | 4-20mA |
Power Supply | 12–24VDC |
Operating Temperature | -40°C to +130°C |
Measurement Application | Solid Height / Liquid Level |
Mounting Type | Flange or Threaded |
Package / Case Material | Aluminum |
Color | Yellow + Blue |
Typical Applications
Cement silo level measurement
Solid material height measurement
Industrial silo level monitoring
Bulk material storage monitoring
Liquid tank level measurement
Industrial storage vessel monitoring
Continuous level monitoring systems
Why Choose the MNSLL-H105?
The MANORSHI MNSLL-H105 combines radar wave measurement technology with a 0.05–120 m measuring range, 2 mm accuracy and standard 4-20mA output.
Its wide operating temperature range and flexible flange or threaded mounting make it suitable for cement silo, solid material and liquid level monitoring applications.
FAQs
What is the MNSLL-H105?
The MNSLL-H105 is a radar level sensor designed for cement silo, solid material height and liquid level measurement.
Is it suitable for cement silos?
Yes. The product is specifically listed as a cement silo radar level transmitter.
What is the measuring range?
The specified measuring range is 0.05–120 m.
What is the measurement accuracy?
The specified accuracy is 2 mm.
What output signal does it provide?
The MNSLL-H105 provides a standard 4-20mA analog output.
What power supply does it require?
The specified power supply is 12–24VDC.
What is the operating temperature?
The specified operating temperature range is -40°C to +130°C.
Can it measure liquid level?
Yes. The product attributes list both solid height and liquid level measurement.
How can the sensor be installed?
It supports flange or threaded mounting.
What material is specified?
The Alibaba page lists the package/case material as aluminum.
Does the page specify the radar frequency?
No. The current product page does not provide a radar frequency, so this parameter should not be added.
Does the page specify an IP rating?
No. The current page does not provide a protection level or IP rating.
