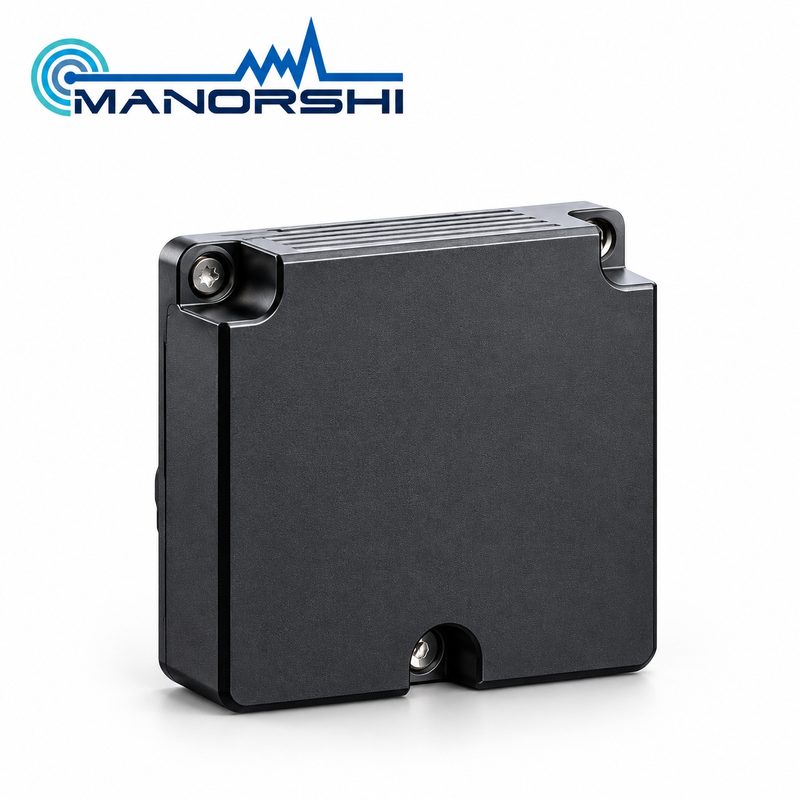

MNS-HMB-P0 Short-Range mmWave Radar
The MANORSHI MNS-HMB-P0 is a compact millimeter-wave radar operating at 76–77 GHz. It provides a detection range of 0.5–50 m and a detection angle of 150° for short-range sensing applications.
The radar supports blind spot detection (BSD) and lane change assistance (LCA). Its compact housing, low weight and CAN or RS485 communication interfaces support integration into two-wheelers and unmanned aerial vehicles (UAVs).
Features
Compact and lightweight design
Wide-angle short-range detection
Blind spot detection and lane change assistance
Flexible communication interface options
Dustproof and waterproof housing
Technical Specifications
Model | MNS-HMB-P0 |
Radar Type | Short-range mmWave radar |
Operating Frequency | 76–77 GHz |
Antenna Configuration | 2 TX / 3 RX (2T3R) |
Detection Range | 0.5–50 m |
Detection Angle | 150° |
Points per Frame | 100 |
Tracked Targets | 16 |
Communication Interfaces | RS485 / CAN |
Supply Voltage | 9–16 V |
Power Consumption | <3 W |
Dimensions | 50 × 50 × 15 mm |
Weight | <60 g |
Operating Temperature | −40°C to +70°C |
Ingress Protection | IP67 |
Mounting | Bracket clip / bolt mounting |
FAQs
What is the detection range of the MNS-HMB-P0?
The specified detection range is 0.5–50 m, with a detection angle of 150°.
Which communication interfaces are available?
The MNS-HMB-P0 supports CAN or RS485 communication.
Which applications are listed for this radar?
The listed application platforms are two-wheelers and UAVs. The radar also supports blind spot detection and lane change assistance.
