90db 12v small Long Continous Beep Tone Alarm active piezo buzzer

  • MSPS36B30P14V12FP
  • 36.5 * 33.3mm
  • 12VDC
  • 3000±500Hz
  • 90dB/12VDC /30cm
  • ≤10mA
  • 5~28VDC
  • MSPS36B30P14V12FP.pdf
Inquire Add to Basket

Specification


TYPE

MSPS36B30P14V12FP

Min. Sound Output at 30cm(dB)

90dB/12VDC /30cm

Rated Voltage VDC12
Operating Voltage VDC5~28
Resonant Frequency(Hz)3000±500
Tone NatureSingle
Operating Temperature(°C)-20~+70
Weight(g)23

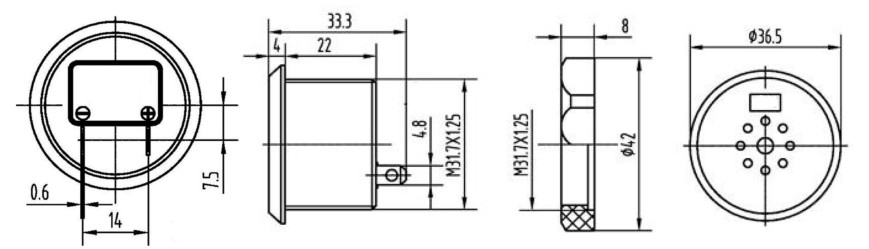

Appearance Drawing

1232

90db 12v small Long Continous Beep Tone Alarm active piezo buzzer
