MSW-A1440H09TR
14 * 9MM
Enclosed
X:120°±15° Y: 65°±15°
40±1.5KHz
Dual use
Specification
Item | Value |
Using method | Transmitter and Receiver |
Center frequency | 40±1.5KHz(PV80A) |
Transmitting Sound Pressure Level | ≥90dB |
Capacitance | 2200±20%pF(at 1.0KHz) |
Horizontal angle | 120±15°(-6dB) |
Vertical angle | 65±15°(-6dB) |
Max.Input Voltage | 150Vp-p(40KHz) |
Detectable range | 40cm~650cm |
Ring time | ≤1.8ms（elmos52409） |
Echo | ≥ 120(test plate φ 75 × 1000mm PVC pipe, distance 1m) |
Impedance | ≤3000Ω |
Mean time between failures | 5000h |
Terminal | Pin |
Housing material | Aluminum |
Protection Class | IP68 |
Operating Temperature | -40~+80℃ |
Storage Temperature | -40~+85℃ |

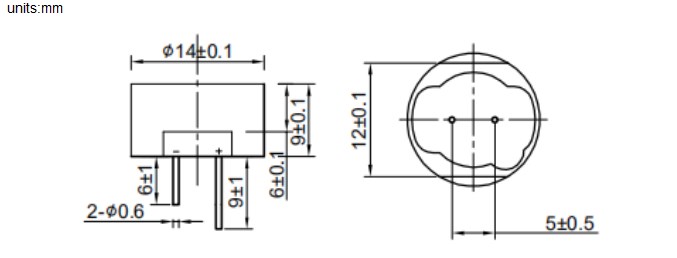

Appearance Drawing
