58kHz Aluminum Enclosed Ultrasonic Sensor with Wires

  • MSW-A1458H09TR-W
  • 14 * 9MM
  • Enclosed
  • X:115°±15° Y:65°±15°
  • 58±1.5KHz
  • ≥85dB (10mm/10Vrms sime wave)
  • ≥150Mv
  • Dual use

Specification

Center frequency(KHz)58±1.5KHz
Echo Sensitivity (Mv)≥150Mv
Decay(Ms)≤1.2Ms
Directivity (X)115±15°
Directivity (Y)65±15°
Capacitance(pF)1800±20%
Max input voltage(Vp-P)140
Using methodTransmitter/Receiver
Sound pressure(dB)≥85dB (10mm/10Vrms sime wave)
QM value≥25
Capacitance(Ω)≤2500
Mean Time To Failure(h)5000
Operating Temperature(℃)-40~+85

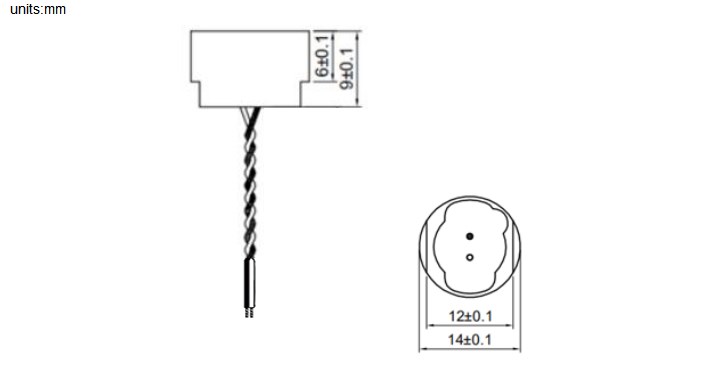

Appearance Drawing
