MSMX50X10S
27.2 * 16.1mm
12VAC
100±20Hz
≥90dB@10cm
≤250mA
8-16VAC
| Availability: | |
|---|---|
Specification
| Type | MSMX50X10S |
| Min. Sound Output at 10cm (dB) | 90 |
| Rated Voltage (Vp-p) | 12V |
| Rate Frequency | 100Hz |
| Operating Voltage (Vp-p) | 8~16 |
| Max. Current Consumption (mA) | 250 |
| Operating Temperature | -20~+60 |
| Storage Temperature | -30~+70 |
| Weight | 14g |
| Connection System | Pins |

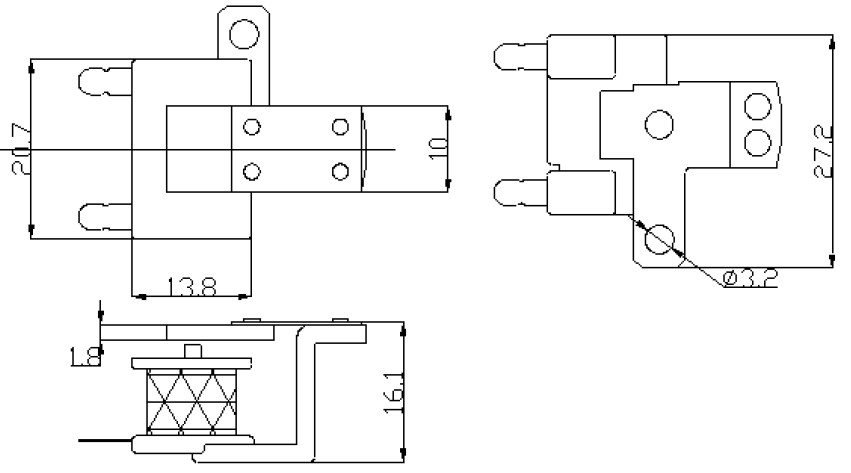

Appearance Drawing
