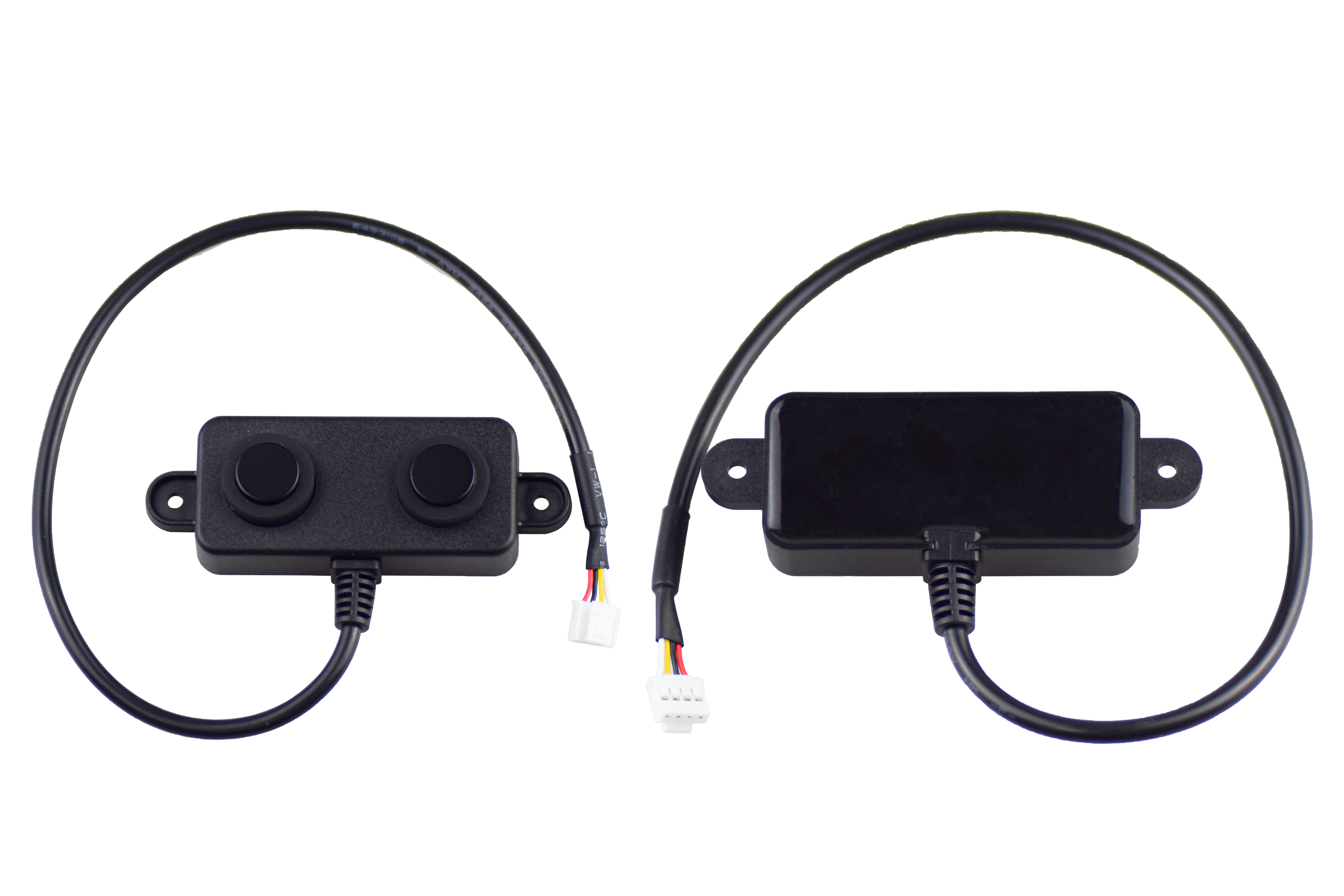

Small blind area IP67 Waterproof Ranging Distance Ultrasonic Sensor Module

Parameter	PWM Pulse Output	UART Controlled Output	HART Auto Output	Switch Output	RS485 Output	Unit
WorkingVoltage	3.3-5	3.3-5	3.3-5	3.3-5	5-24	V(DC)
Standby Current	≤5	≤5	-	-	-	uA
Average Working Current	≤8	≤8	≤8	≤8	≤15	mA
Peak Current	≤40	≤40	≤40	≤40	≤75	mA
Blind Area Distance	3	3	3	3	3	cm
Plane Object Range	3-450	3-450	3-450	3-450	3-450	cm
Work Cycle	Controlled	Controlled	100	100	Controlled	ms
Measurement Accuracy at Room Temp.	±(1+S*0.5%)	±(1+S*0.5%)	±(1+S*0.5%)	±(1+S*0.5%)	±(1+S*0.5%)	cm
Temperature Compensation	No Compensation	Compensation	Compensation	Compensation	Compensation	-
