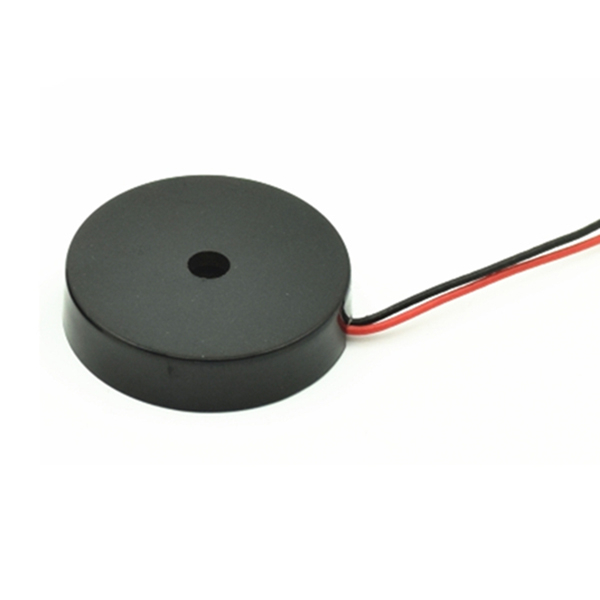

9V 4000Hz Piezo Passive Sounder Buzzer

  • MSPT17D40W55V9
  • 16.5 * 4.0mm
  • 9Vp-p
  • 4000±500HZ
  • ≥82dB@10cm
  • ≤2mA
  • 1~30Vp-p
  • MSPT17D40W55V9.pdf
Availability:

Specification

TYPE (UNIT)

MSPT17D40W55V9

Min. Sound Output at 10cm (dB)82
Rated Voltage (Vp-p)9
Operating Voltage (Vp-p)1~30
Resonant Frequency (Hz)4000+/-500
Max. Current Consumption (mA)2
Capacitance at 1,000HZ (pF)14000+/-30%
Operating Temperature (C)-20~+60
Storage Temperature (C)-30~+70
Weight (g)1

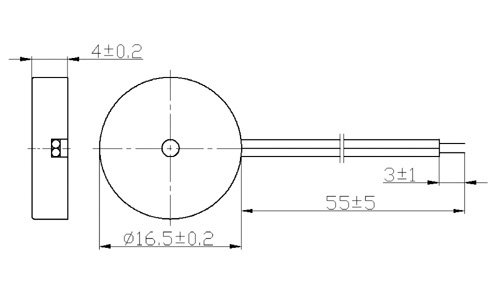

Appearance Drawing

PT17D
