1325 Piezo Passive Buzzer Ultrathin Wire 5v 12V Buzzer
1325 Piezo Passive Buzzer Ultrathin Wire 5v 12V Buzzer
Share to:

1325 Piezo Passive Buzzer Ultrathin Wire 5v 12V Buzzer

  • MSPT13B
  • 13.0 * 2.5mm
  • 12Vp-p
  • 4800±500HZ
  • ≥85dB@10cm
  • ≤2mA
  • 1~25Vp-p
  • MSPT13B（引线款）.pdf
Inquire Add to Basket

Specification

TYPE MSPT13B
Min. Sound Output at 10cm85dB
Rated Voltage12Vp-p
Operating VoltageMax.25Vp-p
Resonant Frequency4800±500Hz
Capacitance15000±30%pF
Operating Temperature-20~+60°C
Storage Temperature-30~+70°C
Weight1

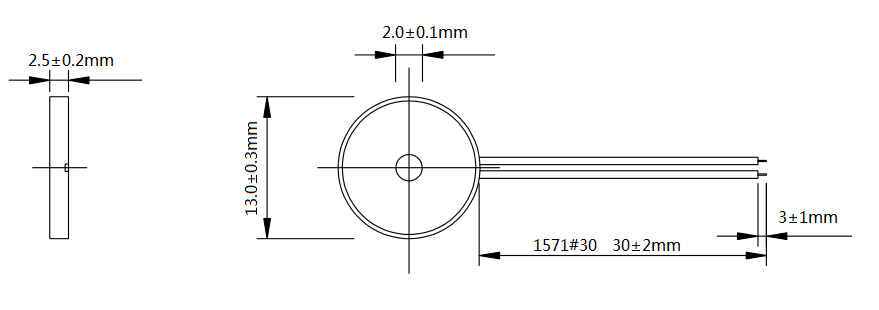

Appearance Drawing

PT13B
