Detect Ultrasonic Sensor Transmitter And Receiver for Intelligent Products

  • MSW-A1640H10TR
  • 16 * 10MM
  • Enclosed
  • 80±10°
  • 40±1.5KHz
  • ≥150Mv
  • Dual use

Specification

Center frequency(KHz)

40KHz±1.5KHz

Transmitting  Sound  Pressurs  Level(dB)

≥100dB (30cm/10Vrms  Sine  Wave)

Receive  Sensitive(dB)

≥-85dB/v/μ bar(0dB=V/Pa)

-6 dB  Directivity(deg)

80±10°

Ringingms

≤1.2

Sensitivity(mV)

200~350

Function

Transmitter/Receive

Capacitance(pF)

2000±20% at  1.0KHz

Allowable  Input  Voltage(Vp-p)

150(40KHz)

Operating  Temperature(℃)

-40~+80℃

Storage  Temperature(℃)

-40~+85℃

Metals  of  case

Aluminum

Terminal

PIN

Weight(g)

3.3±0.2

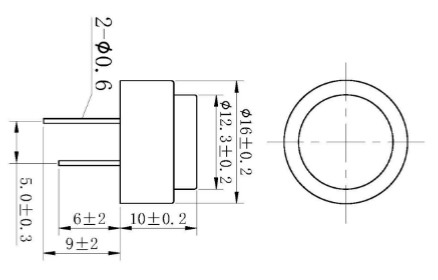

Appearance Drawing
