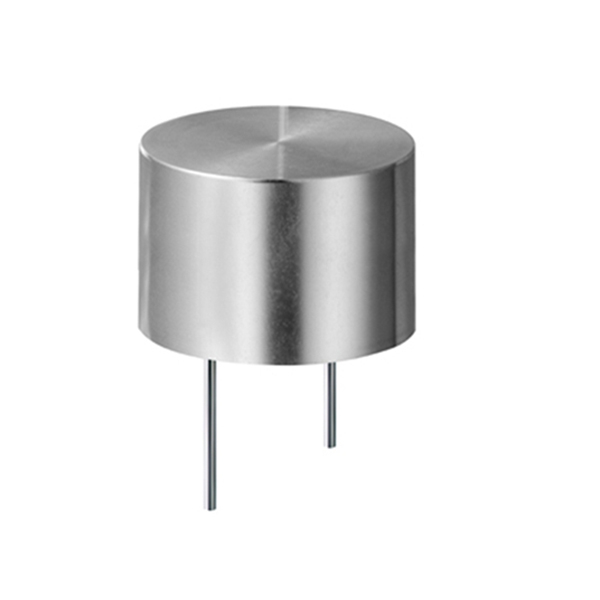

60khz Waterproof Transmitter And Receiver Ultrasonic Sensors

  • MSW-A1060H08TR
  • 10 * 8mm
  • Enclosed
  • 80°±15°
  • 60±1.0KHz
  • ≥150mV
  • Dual use

Specification

Center frequency(KHz)60±1.0KHz
Echo Sensitivity (V)≥150mV
Decay(Ms)≤1.000Ms
Directivity80±15°
Input voltage(Vp-P)140
Mean Time To Failure(h)50000
Operating Temperature(℃)-40~+80
Storage Temperature(℃)-40~+85

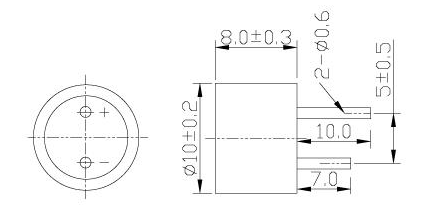

Appearance Drawing
