114db 40KHz Ultrasonic Piezoelectric Transducer Ultrasonic Sensor

  • MSO-AT1640H10R
  • 16 * 10mm
  • Open Type
  • 60°±15° (-6dB)
  • 40±1.0KHz
  • 110 min.dB
  • Receiver
  • 0.2-15m

Specification

ItemUnitSpecification
Construction
Open structure
Using Method
Transmitter
Center FrequencyHz40±1.0k
SPLdB110 min.
Directivitydeg60±15
CapacitancePF2500±30% at 1KHZ
Driving VoltageVrms30 max
Operating Tem.Range-20 to 70
Storage Tem.Range-35 to 85
Housing Material
 Aluminum
Measure distance
0.2-15m

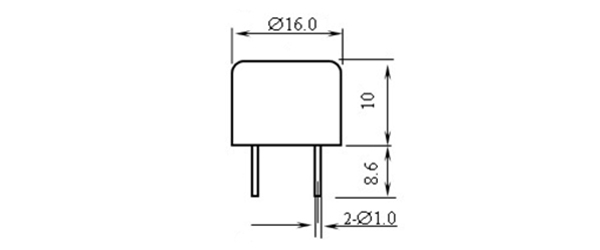

Appearance Drawing
