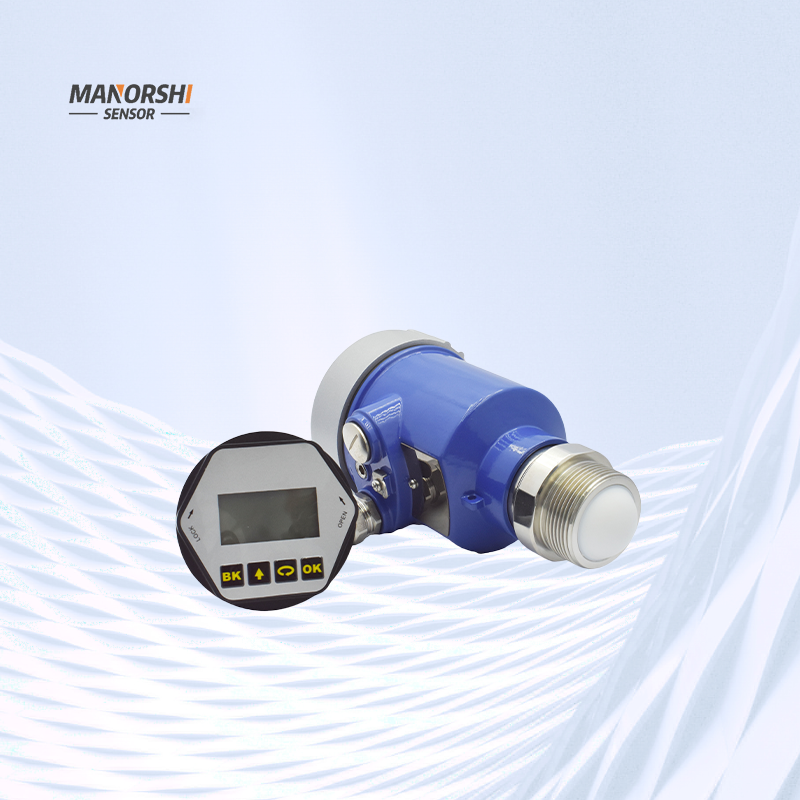

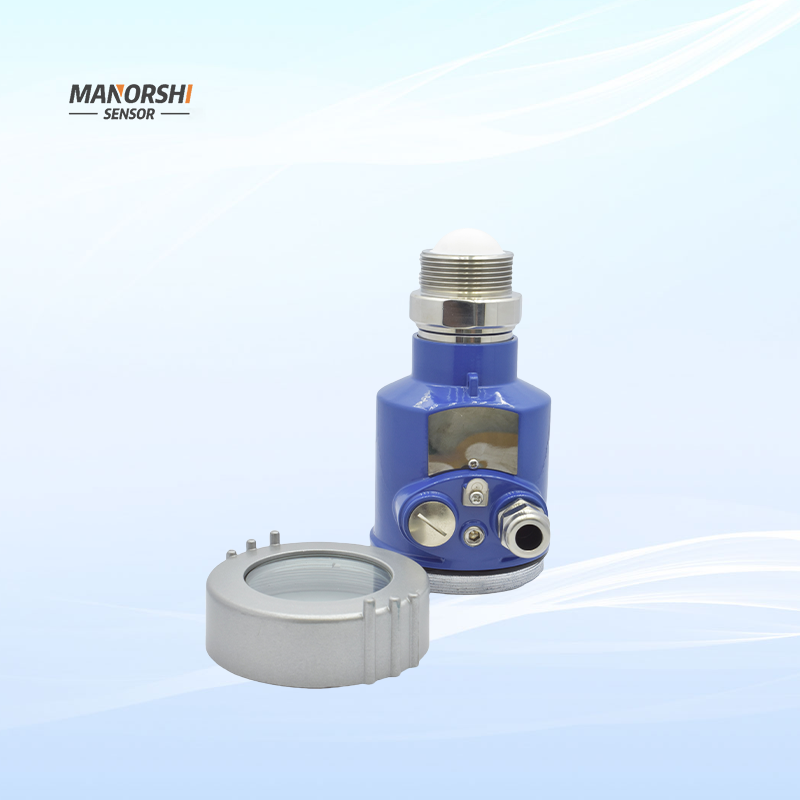

MNSLL-H102 Radar Liquid Level Sensor
The MANORSHI MNSLL-H102 is a radar level sensor designed for liquid level and solid material height measurement.
Using radar wave level measurement technology, the sensor provides a measuring range of 0.05 to 120 meters with a specified accuracy of 2 mm. It outputs a standard 4-20mA signal for integration with compatible industrial monitoring and control systems.
With an operating temperature range from -40°C to +130°C and both flange and threaded mounting options, the MNSLL-H102 is suitable for level measurement applications requiring long measuring distance and high-temperature adaptability.
Key Features
Radar wave level measurement technology
Long measuring range for liquid and solid level applications
High measurement accuracy
Standard 4-20mA industrial output
Wide operating temperature range
Technical Specifications
Parameter | Specification |
Product Model | MNSLL-H102 |
Brand | MANORSHI |
Product Type | Radar Liquid Level Sensor |
Measurement Principle | Radar Wave Level Measurement |
Measuring Range | 0.05–120 m |
Accuracy | 2 mm |
Output Signal | 4-20mA |
Power Supply | 12–24VDC |
Operating Temperature | -40°C to +130°C |
Measurement Application | Liquid Level / Solid Material Height |

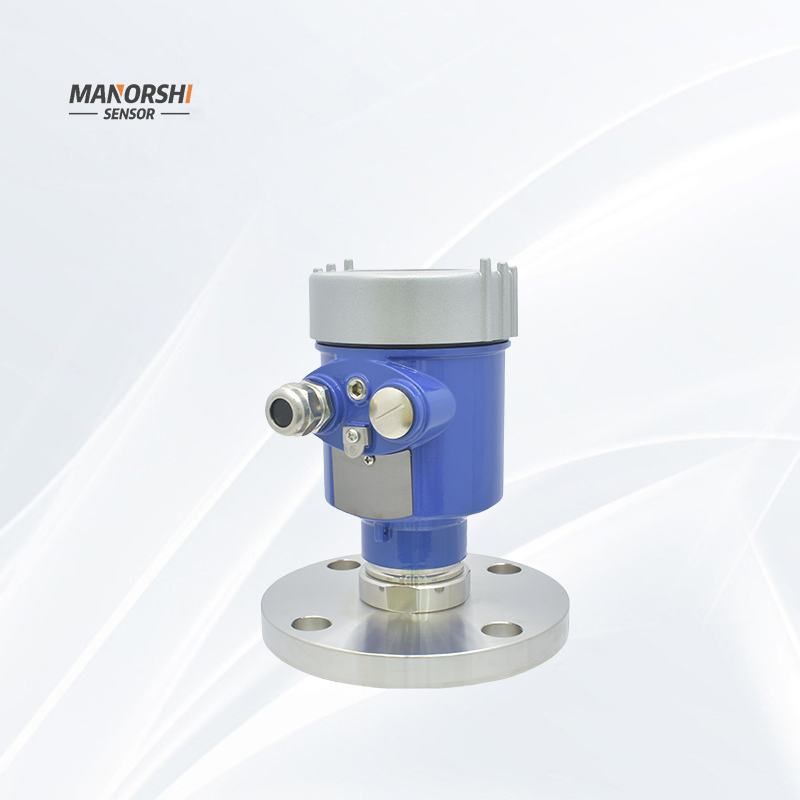

Mounting Type | Flange or Threaded |
Typical Applications
Liquid tank level measurement
Industrial storage tank level monitoring
Solid material height measurement
High-temperature level measurement
Process vessel level monitoring
Industrial level monitoring systems
FAQs
What is the MNSLL-H102?
The MNSLL-H102 is a radar level sensor designed for liquid level and solid material height measurement.
What is the measuring range?
The specified measuring range is 0.05–120 m.
What is the measurement accuracy?
The specified accuracy is 2 mm.
What output signal does it provide?
The MNSLL-H102 provides a standard 4-20mA analog output.
What power supply does it require?
The specified power supply range is 12–24VDC.
What is the operating temperature range?
The specified operating temperature is -40°C to +130°C.
How can the sensor be installed?
The product supports flange or threaded mounting.
Can it measure solid material level?
Yes. The product page lists both solid height and liquid level as measurement applications.
Does the page specify the radar frequency?
No. The current product page does not provide a radar operating frequency.
Does the page specify the protection level or housing material?
No. IP protection rating and material specifications are not provided on the current page.
