5V 75dB 4000Hz Miniature Smd Buzzer Lateral Sound SMT Buzzer

  • SM12PT03A
  • 12.0 * 12.0 *3.0mm
  • 3Vp-p
  • 4000±500Hz
  • ≥75dB@10cm
  • ≤5mA
  • 1~20Vp-p

Specification

NO.ItemUnitSpecificationCondition
1Rated VoltageVp-p3
2Operating VoltVp-p1.0-20.0
3Current ConsumptionmAMax.5At  3Vp-p,square wave,4.0KHZ
4Capacitance at 30HzPF16000±30%
5Sound OutputdBA75/10cmAt 10cm/3Vp-p,square wave,4.0KHZ
6Resonant FrequencyHz4.0±0.5K
7Operating Temp

-40-+85


8Storage Temp

-40-+85


9Dimensionmm12.0*12.0*H3.0See attached drawing.
10Weightgram0.5
11Material
LCP(Black)
12Terminal
SMD typeSee attached drawing
13Storage lifemonth66 months preservation at room temp(25±3℃),Humidity40%
14Environmental
RoHSPiezoelectric buzzer with lead in piezoelectric ceramic chip, EU exemption
Protection Regulation

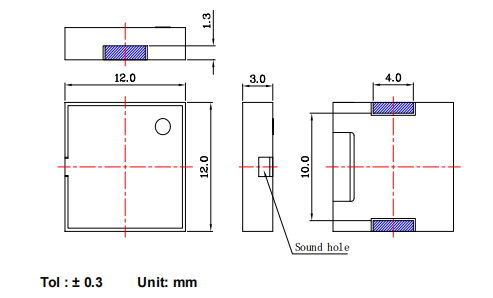

Appearance Drawing
