1.5V V 70dB 80dB Low Voltage Split Magnetic Buzzer

  • MSET12B
  • 12 * 7.5mm
  • 1.5Vp-p
  • 2048±500Hz
  • ≥70dB@10cm
  • ≤70mA
  • 1~2Vp-p

Specification

TYPE (UNIT)MSET12B20P01MSET12B27P01MSET12B20P01
Min. Sound Output at 10cm (dB)808570
Rated Voltage (Vp-p)1.51.51.5
Operating Voltage (Vp-p)1~21~21~2
Resonant Frequency (Hz)204827312048
Max. Current Consumption (mA)707015
Coil Resistance (ohms)1622120
Coil Impedance (ohms)1622120
Operating Temperature (C)-20~+70-20~+70-20~+70
Storage Temperature (C)-30~+80-30~+80-30~+80
Weight (g)222

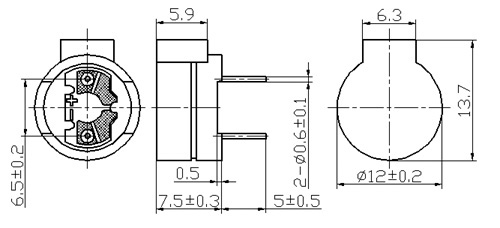

Appearance Drawing
