1.5v 85dbpassive Electronic Magnetic Buzzer

  • MSET12D
  • 12 * 8.5mm
  • 1.5Vp-p
  • 2400±300Hz
  • ≥85dB@10cm
  • ≤30mA
  • 3~5Vp-p

Specification

TYPE (UNIT)MSET12D20P01
Min. Sound Output at 10cm (dB)85
Rated Voltage (Vp-p)1.5
Operating Voltage (Vp-p)1~3
Resonant Frequency (Hz)2400
Max. Current Consumption (mA)30
Coil Resistance (ohms)50±5
Operating Temperature (C)-20~+70
Storage Temperature (C)-30~+80
Weight (g)2

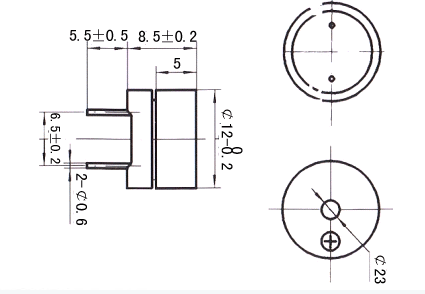

Appearance Drawing

et12d
