Waterproof Ultrasonic Sensor Ranging Distance Measuring

  • JSN-SR20-Y1
  • 44.7*22.8mm
  • Waterproof Type
  • ≤60°
  • 40±1.0KHz
  • Transmitter&Receiver
  • JSN-SR20-Y1.pdf
Availability:

Specification


Pulse   width output

Serial   output

Operating   voltage

DC 3.3~5V

Working   current

8mA

Working   frequency

40kHz

The   longest range

500cm

The   shortest range

2cm

Long   range accuracy

±1cm

Measuring   angle

60 °

Input   the trigger signal

1. 20uS   TTL pulse

2. Serial   port send command 0X55

Output   echo signal

Output   TTL level signal, proportional to range

Wiring

3-5.5V   (power supply positive)

Trig   (control terminal) RX

Echo   (output terminal) TX

GND   (negative power supply)

Size

L48*W23*H10   mm

Operating   voltage

-20°C -   +70°C

Color

PCB   board is blue

Wire   length

Normally   1 meter, could customize

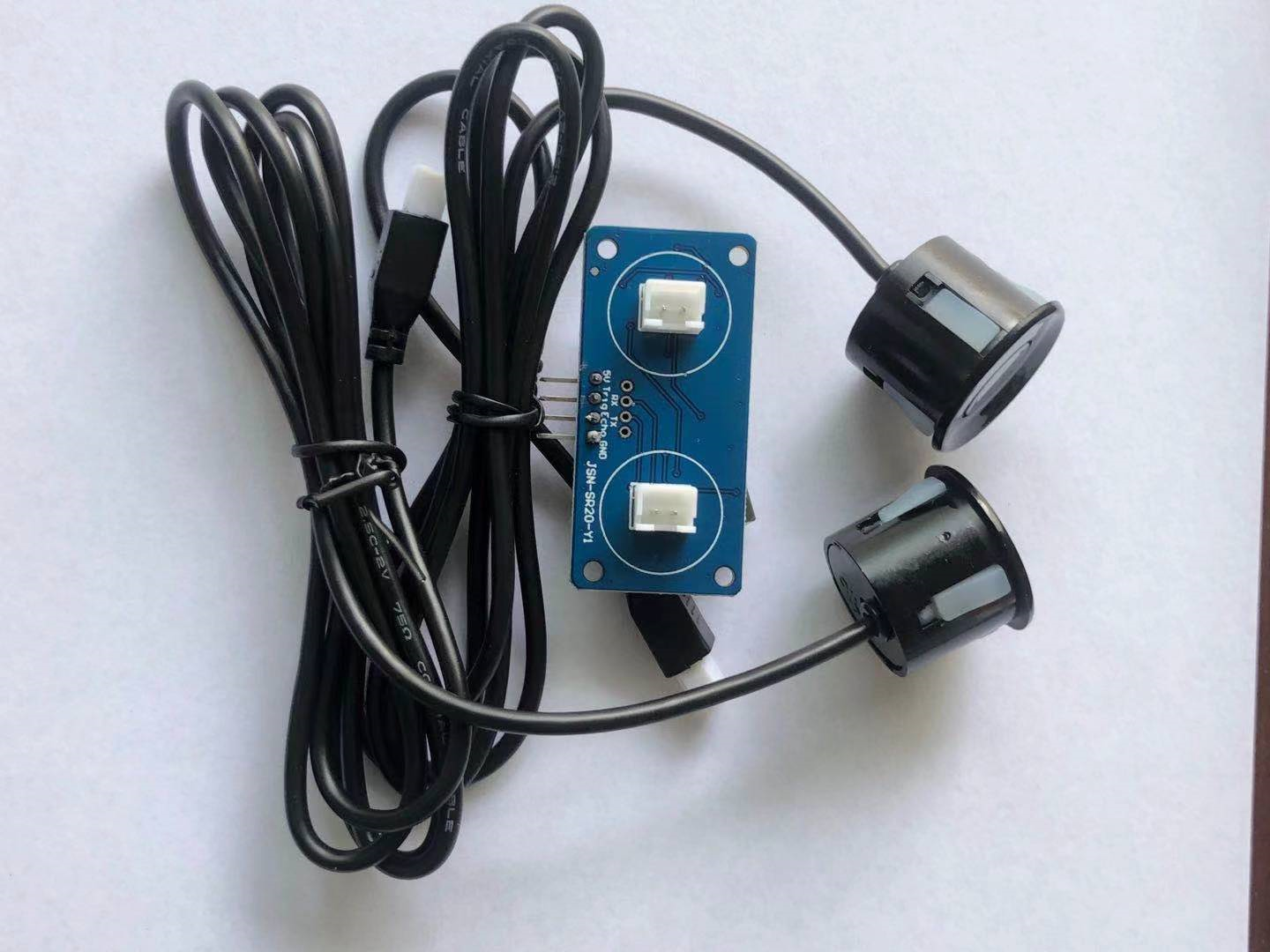

Appearance Drawing

微信图片_20211105163745
