continuous / single 12v piezo buzzer for Home appliance

  • MSPS45A29V12
  • 45.0 * 26.0mm
  • 12VDC
  • 2900±500Hz
  • ≥100dB@10cm
  • ≤35mA
  • 3~18VDC
  • MSPS45A29V12.pdf
Availability:

Specification




TYPE

MSPS45A29V12

Min. Sound Output at 10cm(dB)100
Rated Voltage VDC12
Operating Voltage VDC3~18
Resonant Frequency(Hz)2900±500
Max. Current Consumption(mA)35
Tone NatureSingle
Operating Temperature(°C)-20~+60
Storage Temperature(°C)-30~+80

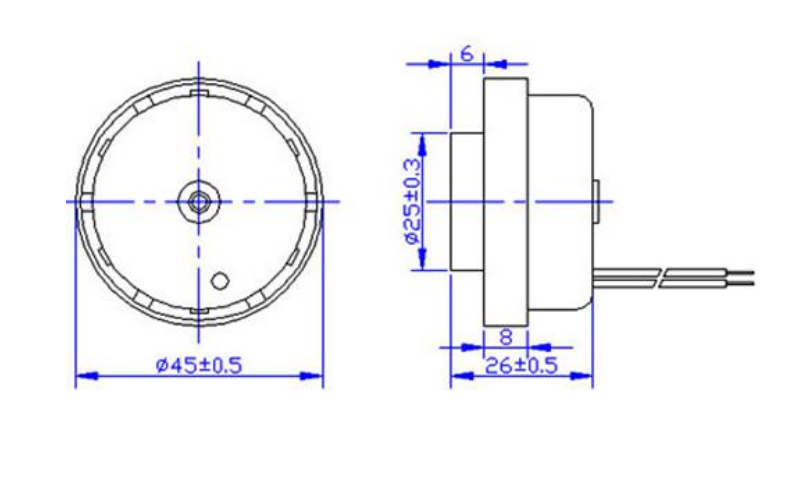

Appearance Drawing

13
