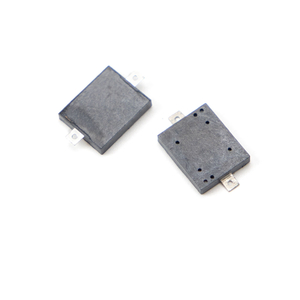

Small 5v Smd Magnetic SMD Active Buzzer for Radio Frequency Identification

  • SM13ES10A
  • 12.8 * 12.8 * 10.0mm
  • 5VDC
  • 2400±500Hz
  • ≥85dB@10cm
  • ≤30mA
  • 4~7VDC

Specification

NO.ItemUnitSpecificationCondition
1Rated VoltageVDC5
2Operating VoltVDC4 - 7
3Mean CurrentmAMax.30Applying rated voltage direct current
5Sound OutputdBA85/10cmDistance at 10cm(A-weight free air), Applying rated voltage direct current
6Rated FrequencyHz2400
7Operating Temp-90
8Storage Temp-110
9DimensionmmL12.8×W12.8×H10.0See attached drawing.
10Weightgram2.8
11Material
PPS(Gray)
12Terminal
Pin typeSee attached drawing
13Storage lifemonth33 months preservation at room temp(25±3℃),Humidity40%
14Environmental
RoHSInternal PCB solder joints contain exempt high temperature lead Tin
Protection Regulation

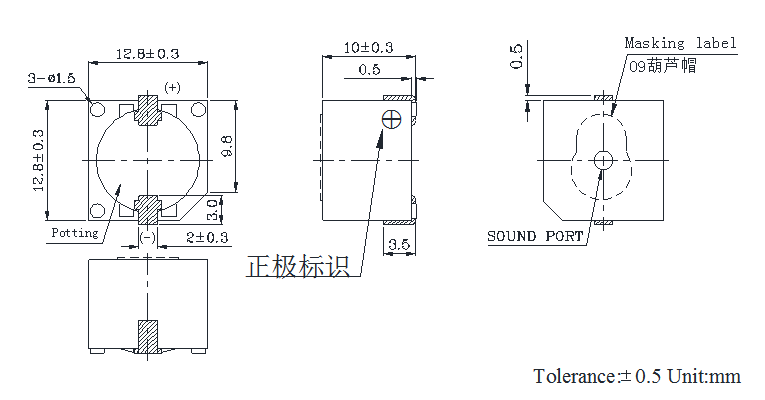

Appearance Drawing
