9.7 * 6.7mm Microphone

  • ME97H67
  • 9.7*6.7mm
  • ≥ 58dB
  • 110dB
  • -52±2dB
  • 20-16000Hz
  • 1~10V

Product Description

No.

Item

Standard

1

Sensitivity

-52±2dB0dB=1V/Pa

2

Output Impedance

≤1.5KΩ

3

Directivity

Omnidirectional

4

Frequency Range

20-16,000Hz

5

Operation Voltage

DC 1.0V-10V

6

Standard Power Supply

DC 1.5 V

7

Min Operation Voltage

1.0V

8

Current Consumption

≤0.5mA

9

Signal to Noise Ratio

≥58dB

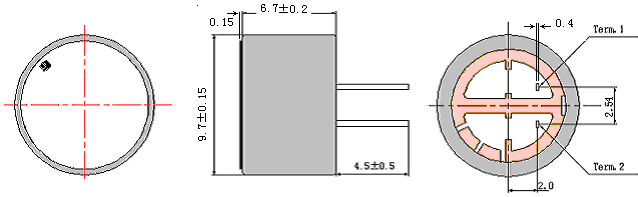

Appearance drawing
