High sensitivity smallest component electret condenser microphone

  • ME60H50
  • 6*5mm
  • > 54dB
  • 110dB
  • -54±3dB
  • 20-16000Hz
  • 1~10V

Product Description

Item

Symbol

Test Condition

Min

Standard

Max

Unit

Sensitivity

S

f=1KHz,Pin=1μbar

51

-     54dB

57

dB

Output Impedance

Zout

f=1KHz,Pin=1μbar

2.0

2.2

2.5

Current

Consumption

I


200


450

μA

S/N Ratio

S/N(A)

f=1KHz,Pin=1μbar

54



dB

Decreasing Voltage Charateristic



S

f=1KHz,Pin=1μbar Vs=4.5→3.0V





-2





dB

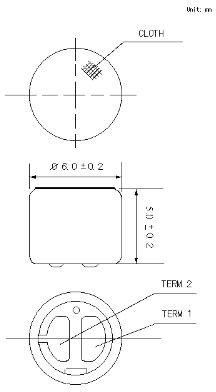

Appearance Drawing
