Home / BUZZER / Magnetic Transducer / 1.5V 70dB 75dB Electronic Magnetic Passive Sound Transducers Buzzer
Share to:

1.5V 70dB 75dB Electronic Magnetic Passive Sound Transducers Buzzer

  • MSET12C
  • 12 * 5.4mm
  • 3Vp-p
  • 2048±500Hz
  • ≥75dB@10cm
  • ≤30mA
  • 1.5~3Vp-p

Specification

TYPE (UNIT)MSET12C20P01MSET12C20P01
Min. Sound Output at 10cm (dB)7570
Rated Voltage (Vp-p)1.51.5
Operating Voltage (Vp-p)1~21~2
Resonant Frequency (Hz)20482048
Max. Current Consumption (mA)3015
Coil Resistance (ohms)40120
Coil Impedance (ohms)40120
Operating Temperature (C)-20~+60-20~+60
Storage Temperature (C)-30~+70-30~+70
Weight (g)22

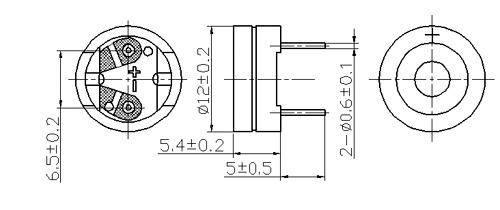

Appearance Drawing
